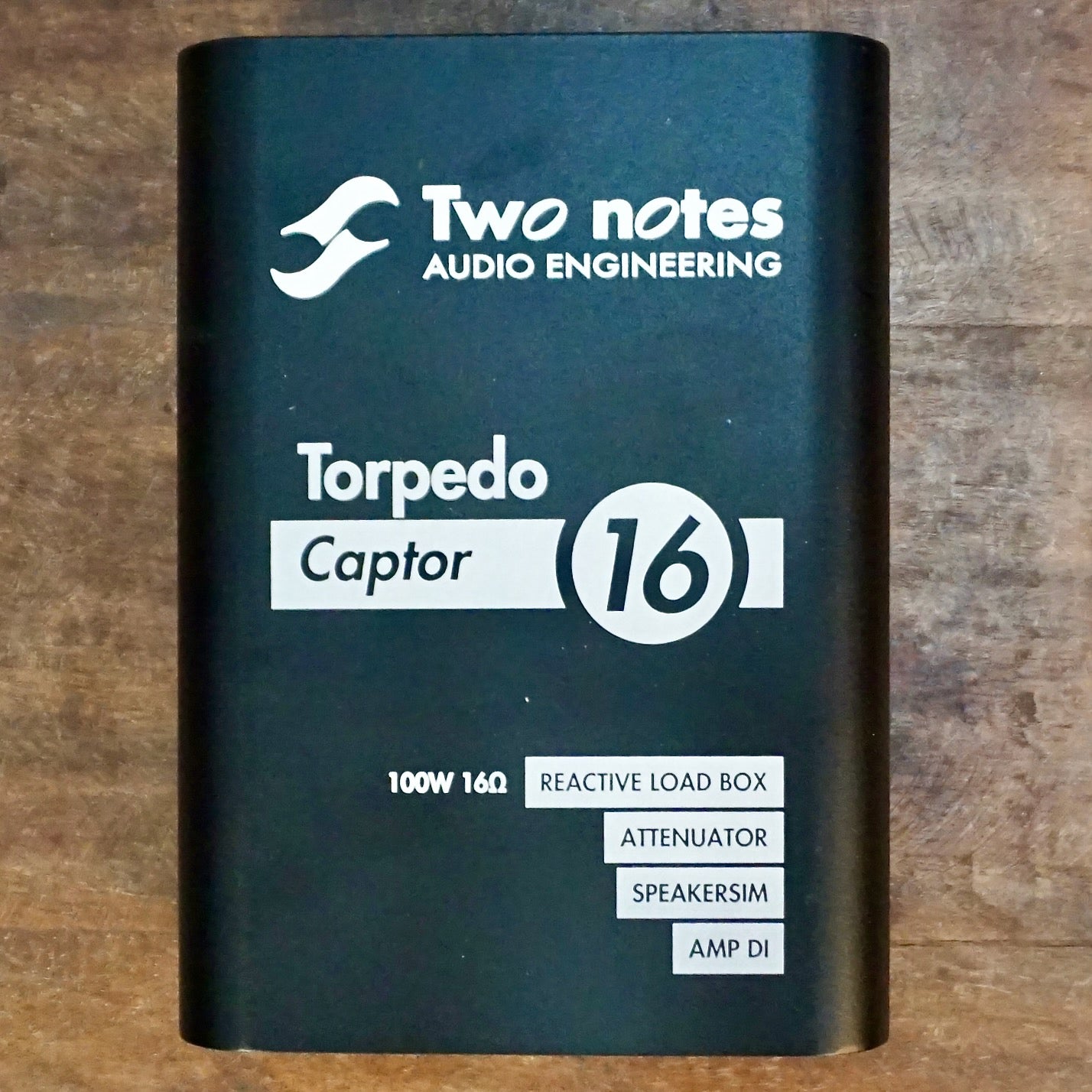

Two Notes Captor 16 Ohm

Input / Output

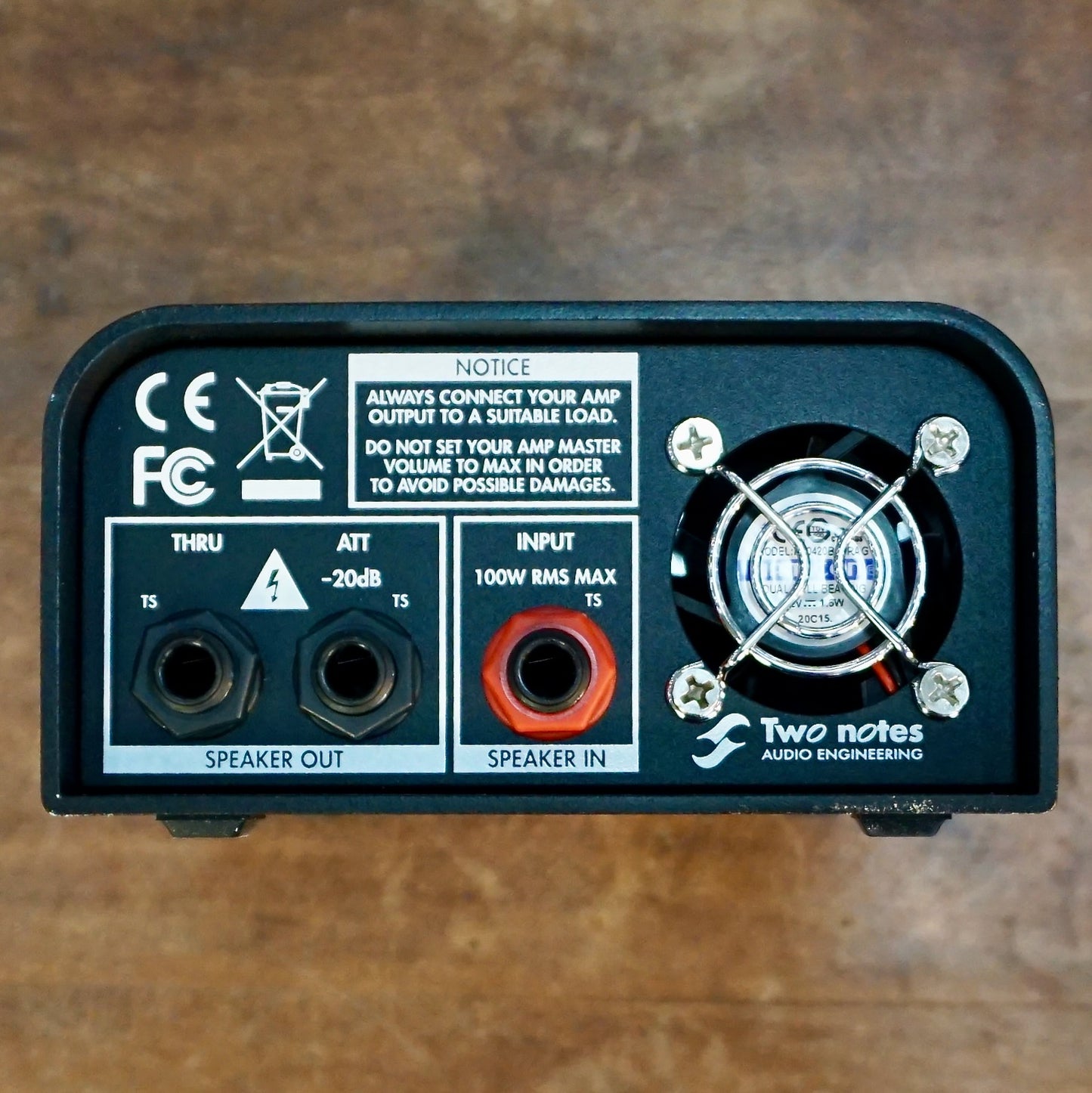

Speaker Input :
1/4″ Jack unbalanced (TS)

Speaker Attenuated Output :
1/4″ Jack unbalanced (TS)
Attenuation: -20dB

Speaker Thru* :
1/4″ Jack unbalanced (TS)
Directly connected to Speaker Input
*Loadbox disconnected when in use

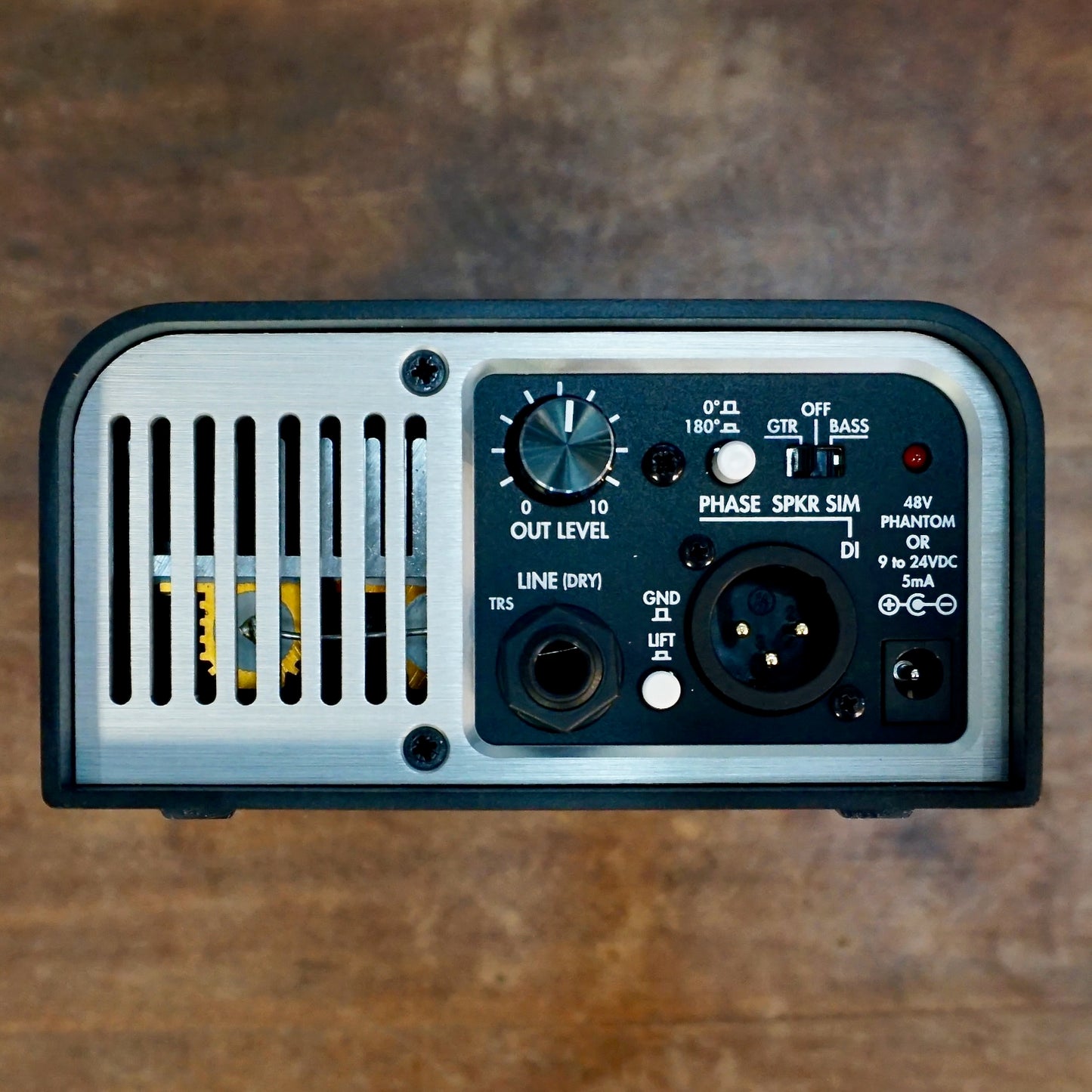

Line Output* :
1/4″ Jack balanced (TRS)
Impedance: 1000 Ohms
Phase switch
Ground lift
*Without speaker simulation

DI Output :
XLR balanced
Impedance: 600 Ohms
*With or without speaker simulation

Analog speaker sim :
Guitar : based on Brit VintC DynIR Cabinet – Dyn57 Microphone
Bass : based on Fridge DynIR Cabinet – Cnd87 Microphone

Reactive Load Box

Impedance :
4, 8 or 16 Ohms

Max admissible power :
100W RMS

Safety system :
Temperature-controlled fan
Active thermal safety

Power

Input voltage :
Phantom power or 9-12V DC jack, 2.1×5.5mm, negative center.

Current draw :
5mA

Power input connector:
DC connector, 2.1mm x 5.5mm, center negative

Power is required only for the XLR DI output and analog speaker sim

Dimensions & weight

Width x Depth x Height*:
12.6cm x 17.5cm x 6.2cm – 4.9″ x 6.7″ x 2.4″
*Including connectors and knobs
